Piezo Alert Module

D-BZR

$311.79

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

D-BZR

Piezo Alert Module

Provides an Audible Alert of a Remote Condition
LED Alarm Indicator
Front-Panel Reset Button
Remote Reset Provision
Momentary or Latching Operation
Selectable Audio Level

Description

Specifications

Control Inputs: TRIP and RESET (ground to activate)
Audible Alert: Approx. 4 kHz 85 dB spl @ 10cm (loud), or 75 dBspl @ 10cm (soft)
Ambient Operating Environment: 0° C to 55° C
Power Requirement: 24 Vdc or ac @ 10 mA

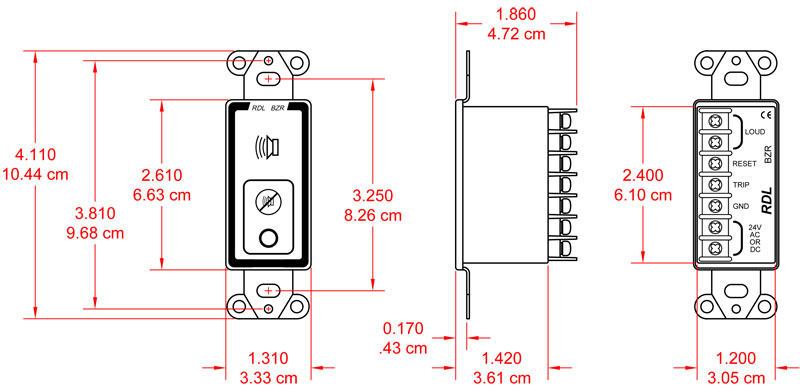

Dimensions: Height: 4.1 in. 10.4 cm; Depth: 1.6 in. 4.1 cm; Width: 1.3 in. 3.3 cm
Package Type: Cardboard Box
Tariff code: 8543.70.9860
WEEE weight: 0.255 lbs.
Shipping Weight: 0.405 lbs.
Package Dimensions: 3.625 x 4.625 x 2.125 in.

Piezo Alert Module

D-BZR

$311.79

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

D-BZR

Piezo Alert Module

Description

Specifications

Dimensions
