Clark, Dual Pair 24 AWG 110 Ohm Digital Audio Cable

C802-R/W

$3.04

* Ex GST. Check with us for Discounts and the latest Trade pricing!


Quantity Discounts apply, please contact us for more details.

  • Easy-to-Strip and Terminate - jacket and bonded foil shield strip in one operation
  • Bonded Pairs - each pair is fully color coded and cleanly seperates
  • Low-Wick Insulation - high melt temperature minimizes insulation reduction when soldering
  • 24 AWG Low-Loss Conductors - low loss, corrosion resistant and easy to solder
  • 110 ohm Characteristic Impedance - precision impedance for 192kHz/24bit data transmission
  • UL Rated CM - suitable for permanent installation tin applications that require CM listed cables

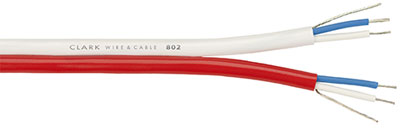

Clark's 802 is a low-loss 110 ohm data cable for AES/EBU digital audio applications. Easy to terminate, the 802 features a bonded easy-strip shield and tinned copper conductors that streamline cable termination. Excellent common-mode and RF/EMI noise rejection are achieved by a precision twisted pair and 100% foil shield. For impedance matching in data transmission applications, the 802 has a precision 110 ohm characteristic impedance. UL rated CM, the 802 can be installed in a variety of permanent installation environments.

Download Product Datasheet
