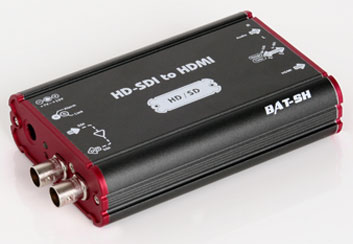

Lumantek, Mini Converter HD/SD-SDI to HDMI

BAT-SH

$376.00

* Ex GST. Check with us for the latest pricing

Our innovative BAT Series line of mini converters offer superior signal quality with the lowest SDI jitter. The BAT Series is a versatile and feature-packed solution for your project and budget requirements. Based on your conversion needs, there are six models to choose from supporting a full range of SDI (3G/HD/SD), HDMI and Analog Composite/Component options.

  • Auto detection mode (HD/SD)
  • Re-clocked loop-through HD/SD-SDI output on 75 ohm BNC
  • Supports 8 audio channels (4 stereo pairs) at 48kHz sample rate
  • Additional analogue stereo audio outputs on RCA
  • HDMI v1.3 compliant
  • Selectable analogue stereo audio input or HDMI embedded by DIP switch
  • Selectable luminance range (0~255/16~235) by DIP switch
  • Selectable HD/SD color space conversion by DIP switch
  • Superior signal quality with low-jitter
  • High signal strength (up to 200M transmission distance)
  • Advanced heat shield for extended use (continuous 24/7 operations)
  • Low power consumption (<3 Watt for stable operation)
  • Wide input power range (+7~+15 VDC) including operation on external battery
  • Multi-color LED status indicators
  • All-aluminum construction: industrial-strength durability and effective heat dissipation
  • Power adapter included (Input: 200~240V, 50/60Hz, Output: +12V DC, 1.0A)
  • 3 year warranty
  • Camera-mounting bracket (optional extra)

Download Product Datasheet
