Telewave, FM Broadcast Dipole Antenna, 2.6 dBd

ANT90D

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!

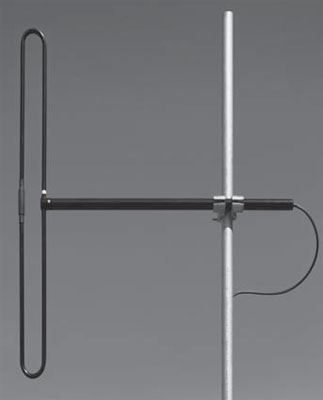

The Telewave ANT90D is a rugged, high-performance single dipole antenna designed for the FM broadcast band. This antenna provides 20 MHz bandwidth with no tuning required. The horizontal pattern is adjustable, and multiple elements can be stacked for increased gain and pattern control. This antenna is ideal for LPFM and translator stations for fill-in or small market coverage.

Each dipole element is constructed with 6061-T6 aluminum, and welded at the base for maximum strength. Each element is also completely sealed with our high-tech Txylan coating, which resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain and windblown abrasives.

All components are at DC ground potential for lightning protection. A full clamp set is included for mounting to a 1.5"-3.5" diameter galvanized steel support pipe or tower leg.

Up to 15 degrees of electrical uptilt or downtilt can be specified for multiple element arrays. Desired tilt angle must be included with the order, and consultation with our antenna engineering staff is requested.

Download Product Datasheet
