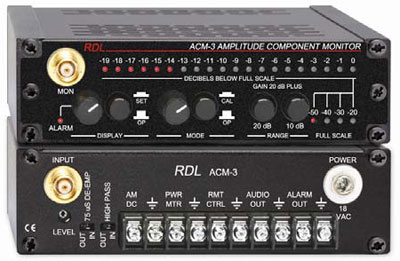

RDL Amplitude Component Monitor

ACM-3

$2,535.85

* Ex GST... Call us for Discounts and the latest Trade pricing!

Call for delivery - limited stock

ACM-3

Amplitude Component Monitor

Maintain Clarity
Maximize Loudness
Maximize Stereo Separation
Reduce Subcarrier Crosstalk
Assure Consistency of your Signal Coverage
Maintain Positive Control of Multipath Artifacts
Maximize Performance From Your FM Transmitter
Mount using RU Series Mounting Options

Description

RDL’s® ACM technology is the only time-proven, industry accepted method of controlling Synchronous AM Noise (the elusive FM transmission bandwidth variations that aggravate multipath artifacts in listeners’ receivers). Hundreds of top performing FMs in every major U.S. market turn to ACM technology for maximum bandwidth performance. Every transmitter, new or old, can easily produce poor bandwidth, or can be made to perform as well as any signal in the market. Every FM station needs ACM technology to provide the accurate AM measurement and continuous monitoring needed for optimum transmitter tuning and performance.

Specifications

Input/Ouput Connector: BNC
Maximum Input Signal: 30 V (combined filtered carrier + AM)
Measurement Range: -20 dB to -69 dB (front-panel display), -10 dB to -90 dB (front-panel scope jack)
Residual Noise: < 95 dB below 100% amplitude modulation
Oscilloscope Jack: BNC 5 V p-p for full-scale display
Audio Output: +4 dBu, 100 Ω source impedance
THD of recovered AM: < 0.03%
DC Output: DC level representing significant synchronous AM
Ambient Operating Environment: 0° C to 50° C
Power Requirement: 18 Vac, external supply included (North America)

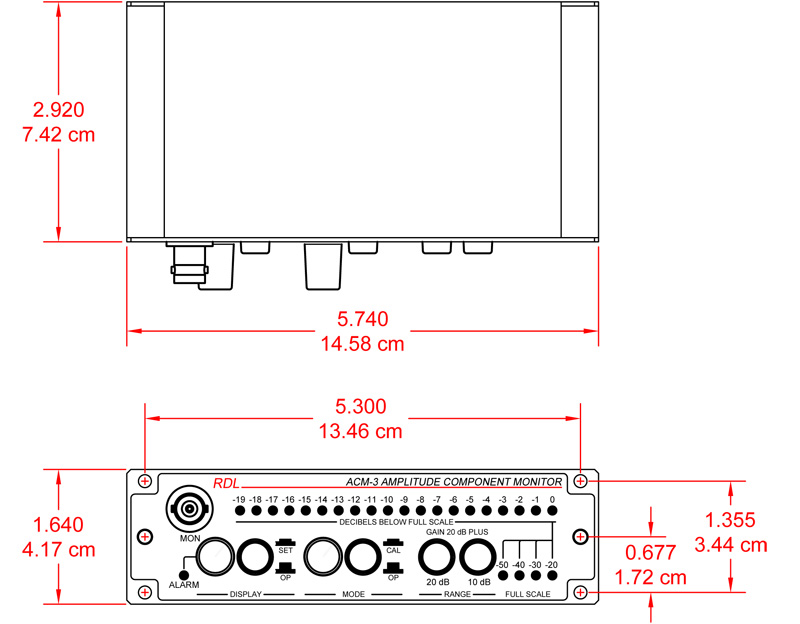

Dimensions: 1.7 in. x 5.8 in. x 4.1 in., (4.1 cm x 15.0 cm x 10.4 cm)
Package Type: Cardboard Box
Shipping Weight: 1.395 lbs.
Package Dimensions: 6 x 6 x 2.625 in.
WEEE Weight: 1.155 lbs.
Tariff Code: 9031.80.8060
