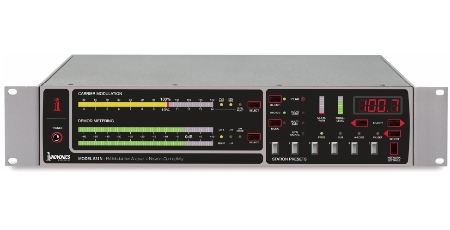

Inovonics, 531N - FM Modulation Monitor

531N

$6,006.45

* Ex GST. Check with us for the latest pricing

Incorporating all the necessary features for station setup, regulatory compliance, and remote monitoring, Inovonics' 531N is the ultimate choice for essential FM signal monitoring. Dependable, direct input and off-air reception lets you keep a sharp eye on your total RF signal performance whether you're right at the transmitter site or half way around the world.

The 531N adds new monitoring and control features which are accessible remotely via the Web interface.

The high-resolution LED bargraph displays are easy to read, and a "floating dot" program peak marker eliminates any ambiguity in the total-mod measurement. Off-air readings are qualified by Inovonics' exclusive multipath indicator, which also aids in antenna alignment during initial station build-outs. In addition, readouts of signal strength and synchronous AM noise qualify the incoming signal and validate measurements.

Rear-panel alarms constantly check for Audio Loss, RF Loss, Multipath and Overmodulation, while advanced notifications alert personnel with e-mail or SMS messaging when any or all of the alarms occur.

Features:
  • Complete set of metering and measurement tools to ensure FM broadcast regulatory compliance worldwide.
  • Separate inputs for Antenna, High Level *direct* RF, and composite signal measurements.
  • Full-time display of Signal Strength and Multipath effects, plus Synchronous AM noise output (BNC) to validate readings and aid in antenna alignment.
  • Composite and Balanced analog Left and Right line outputs.
  • Front panel metering for subcarrier injection levels: 38kHz, 57kHz (RDS), 67kHz, & 92kHz.
  • Advanced Metering includes an FFT Spectrum Analyzer for the MPX, Left/Right XY plots and audio levels over time.
  • Alarms for Peak Overmodulation, Signal Loss, Program Audio Loss and Multipath.
  • Rear-panel closures to ground enable remote alarm indications and preset station switching.
  • "Responsive" Remote Control Web interface with live audio streaming.
  • SNMP control and support.

Download Product Datasheet
Download Product User Guide
