WATTMETER DIGITAL & ANALOG MODULATION

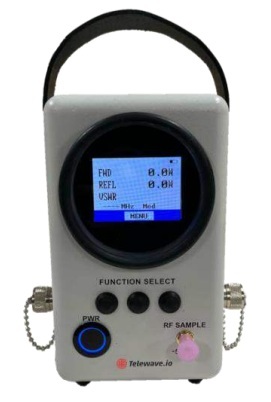

Telewave 44D-LX Digital/Analog Broadband RF Wattmeter

The Telewave.io Model 44D-LX Broadband RF Wattmeter is a compact, versatile test

instrument for the direct measurement of forward and reflected RF power.

Like Telewave.io’s venerable 44A Wattmeter, the 44D-LX wattmeter is housed in the same

ruggedized housing and form factor. The Digital wattmeter supports legacy Land Mobile

(LMR) Modulation (CW, FM, and Non-TDMA FSK), with the addition of newer TDMA &

Quadrature modulation schemes (P25-P2, DMR, TETRA) (details in the user manual.)

This meter does not require field calibration, frequency elements (slugs), or the use of

correction tables at any temperature or frequency within specification.

The features of the 44D-LX include:

Extended Battery Life & Rapid Charging – Provides up to 8 hours of operation with an internal battery. 8.4V DC charger and cable included, 4x faster charging.
An optional external battery available for up to 16 hours of operation.
USB-C Data Port – Data transfer only
Digital Frequency Counter – Built-in for precise frequency measurement.

Accessories:

Universal (wall wart) power supply 90 to 250 VAC in, 8.4V DC Charger is included
The destination "ship to" country requiring the appropriate type C, G, or I Male to
US Female Adapter will be included to be compliant with their power socket
conventions of their country
