Konvision

Established in 2009, Konvision has emerged as a preminent force in the realm of professional broadcast monitor manufacturing. Konvision extensive product portfolio encompasses a diverse range of display technologies, including cutting-edge LCD, OLED, and the revolutionary Mini-LED monitors. These monitors are meticulously engineered to meet the exacting demands of various professional settings such as state-of-the-art studios, post-production facilities, precise color grading suites, dynamic filming locations, highly mobile OB vans, flexible EFP setups, and even the burgeoning field of video conferencing.

Konvision take pride in its specialization across a broad spectrum of resolutions, from HD to UHD 4K/8K HDR. Our monitors are available in a wide array of sizes, spanning from a compact yet powerful 4″ to a commanding 65″, ensuring that there is a perfect fit for every conceivable monitor application. Whether it’s the need for a portable solution for on-location shoots or a large-format display for a control room, Konvision has you covered.

In addition to broadcast monitors, Konvision is constantly pushing the boundaries of innovation. Its dedicated R&D efforts are focused on developing advanced recording monitors that not only display but also capture and store crucial visual data with utmost precision. It is also at the forefront of the technological revolution with our ST2110 IP/NDI monitors, which are designed to seamlessly integrate into modern IP-based workflows, enabling efficient and high-quality content distribution. Moreover, its foray into the field of surgical monitors showcases our versatility, as it apply its expertise in display technology to the critical domain of medical imaging, providing surgeons with clear, accurate, and reliable visual information during procedures.

Konvision’s NDI Broadcast Monitors 4K ST2110/NDI Monitors

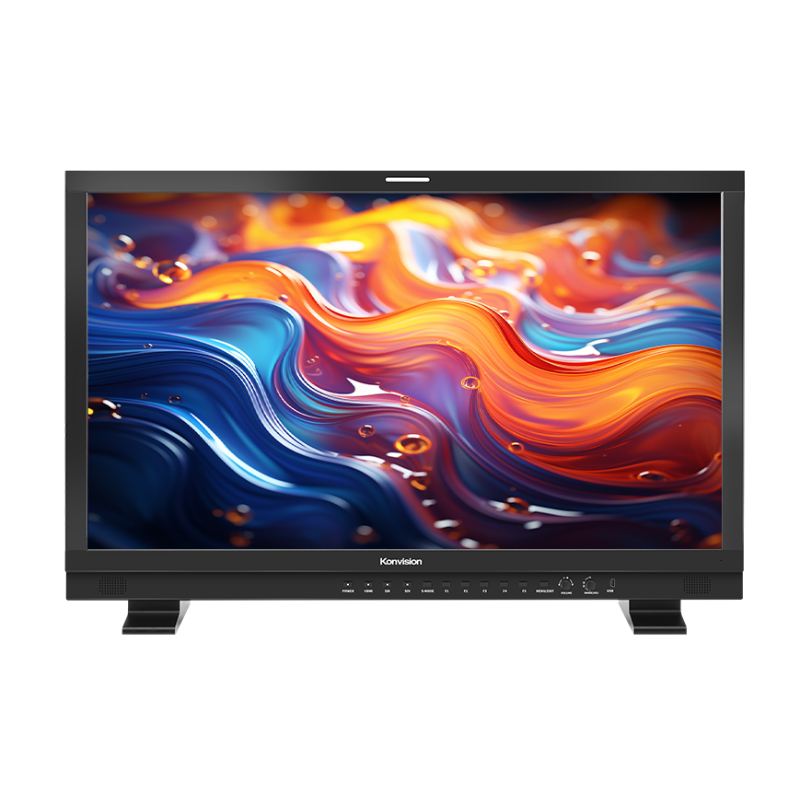

KUM-2410H-IP25G

 24″ 4K HDR ST2110 IP Monitor

Highlights

• 12-bit video processing
• Color spaces: Rec.709/EBU/DCI-P3/DCI-P3 D65/Rec.2020
• HDR support: HLG (1.03/1.11/1.16/1.20/1.27/1.33), ST2084 PQ/(softroll)
• Quad-view mode for mixed SDI/HDMI/SFP28 signals with variable resolutions/frame rates
• 4K HDR to 2K SDR down-conversion with custom 3D LUT output
• Darkness Check, Highlight Check
• Audio Level Meter, Audio Phase, 5.1/7.1 Surround Phase
• Mirror, Rotation, Zoom, Freeze, Full Scan, Overscan, H/V delay
• Gamma options: 2.0/2.2/2.4/2.6
• 2×12G-SDI & 2×3G-SDI input/loop-out, supporting 4K single/quad-link

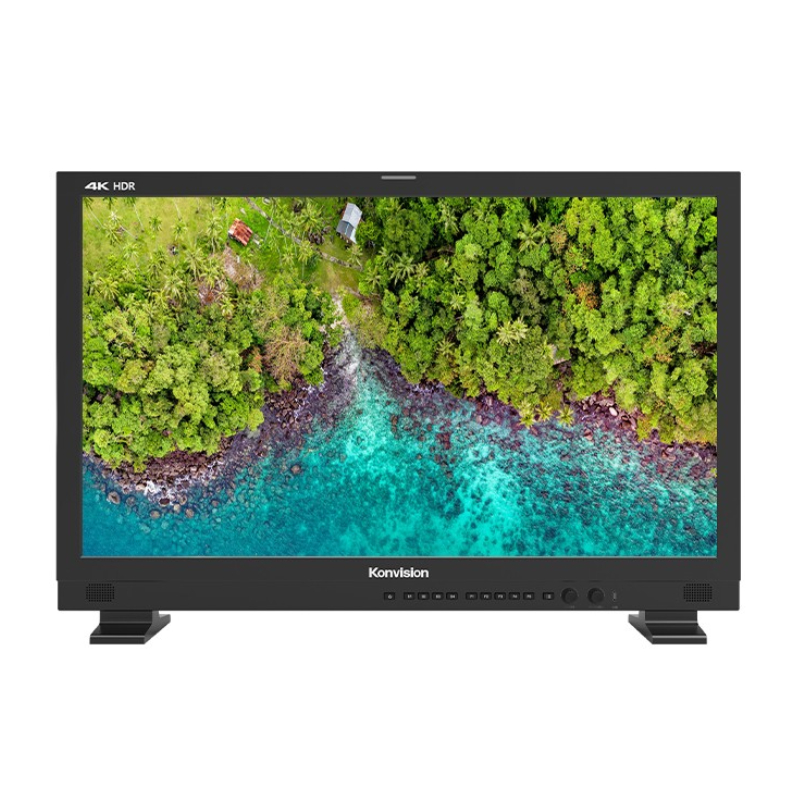

KUM-2410H-NDI

 24″ 4K HDR NDI Monitor

Highlights

• 12-bit video processing
• 1200 nits super high brightness
• 178°(H/V) full viewing angle IPS LCD panel with 3840×2160 4K resolution
• Full NDI & NDI|HX support (NDI 6.0 compatible)
• Color spaces: Rec.709/EBU/DCI-P3/DCI-P3 D65/Rec.2020
• HDR support: HLG (1.03/1.11/1.16/1.20/1.27/1.33), ST2084 PQ/(softroll)
• Quad-view mode for mixed SDI/HDMI signals with variable resolutions/frame rates
• Mirror, Rotation, Zoom, Freeze, Full Scan, Overscan, H/V delay
• Gamma options: 2.0/2.2/2.4/2.6
• 2×12G-SDI & 2×3G-SDI input/loop-out, supporting 4K single/quad-link

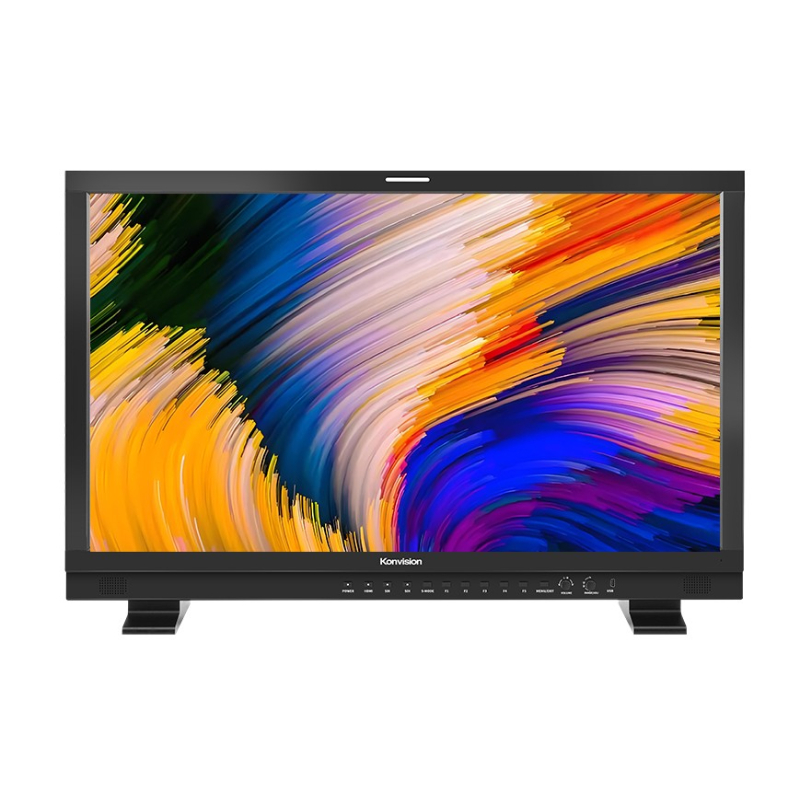

KXM-3210M-IP25G

 32″ 4K HDR ST2110 IP Monitor

Highlights

• 12-bit video processing
• Color spaces: Rec.709/EBU/DCI-P3/DCI-P3 D65/Rec.2020
• HDR support: HLG (1.03/1.11/1.16/1.20/1.27/1.33), ST2084 PQ/(softroll)
• Quad-view mode for mixed SDI/HDMI/SFP28 signals with variable resolutions/frame rates
• Mirror, Rotation, Zoom, Freeze, Full Scan, Overscan, H/V delay
• GPI remote control for Tally/assist functions/scene preset
• Gamma options: 2.0/2.2/2.4/2.6
• 2×12G-SDI & 2×3G-SDI input/loop-out, supporting 4K single/quad-link
• Audio Level Meter, Audio Phase, 5.1/7.1 Surround Phase
• Darkness Check, Highlight Check

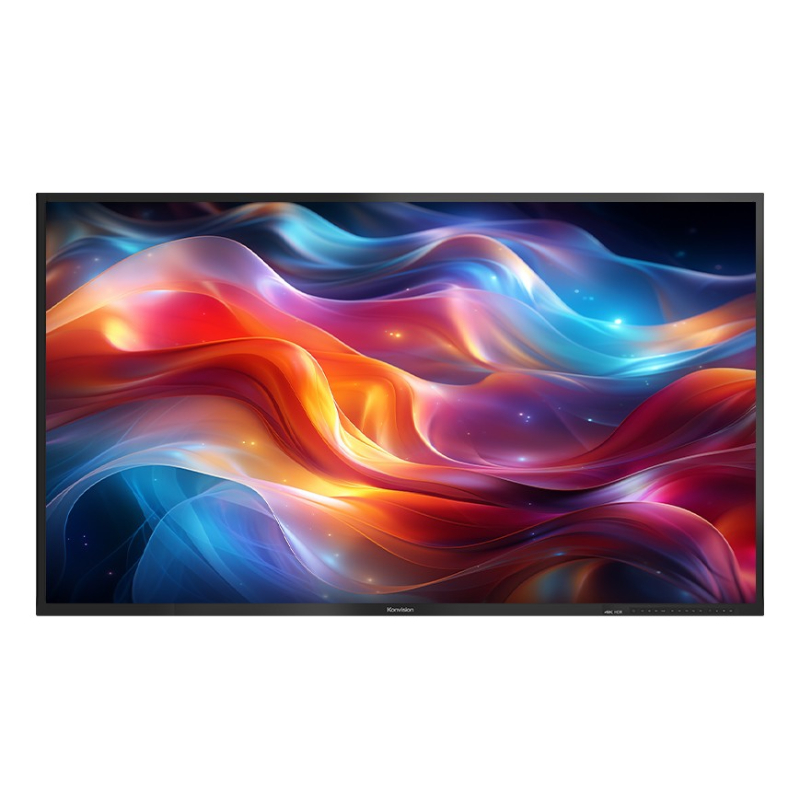

KXM-5510M-IP25G

 55″ 4K/8K HDR ST2110 IP Monitor

Highlights

• 12-bit video processing
• Quad-view mode for mixed SDI/HDMI/SFP28 signals with variable resolutions/frame rates
• Mirror, Rotation, Zoom, Freeze, Full Scan, Overscan, H/V delay
• Audio Level Meter, Audio Phase, 5.1/7.1 Surround Phase
• 4×3G-SDI quad-link (SQD/2SI) up to 4K60p
• False Color, Zebra, Focus Assist, Blue/Mono Only
• GPI remote control for Tally/assist functions/scene preset
• Full SMPTE ST 2110 compliance including NMOS discovery/register system
• Gamma options: 2.0/2.2/2.4/2.6
• Independent color space/EOTF settings per window in quad-view mode

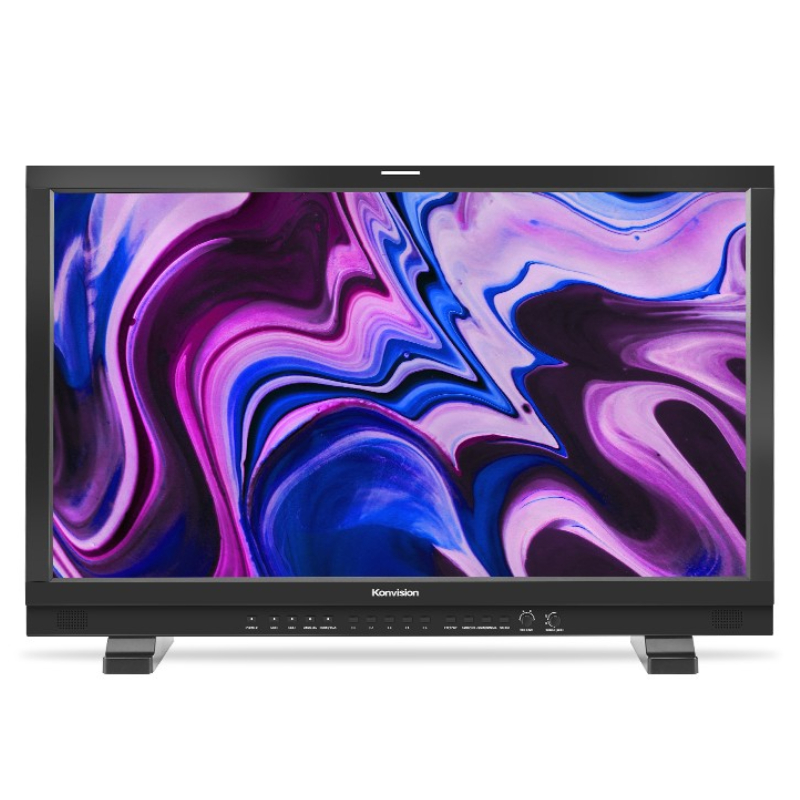

KVM-1961W

 18.5″ HDR Premium Broadcast Monitor

Highlights

• 1920×1080 resolution
• 12 Bit Video Processing
• HDR supports PQ (ST2084) and HLG(1.0,1.1, 1.2, 1.3, 1.4, 1.5)
• H/V Delay, Over Scan, Markers
• Various Gamma selection: Gamma 2.0, 2.2, 2.4, 2.6
• Picture Flip, Focus Assist
• Remote control: Ethernet/GPI, RS422 In/Out
• Color space: REC709/EBU/DCI-P3 D65/DCI-P3/REC2020
• EOTF Log Curves: Slog(SDR), Slog2(SDR), Slog3(SDR), Slog3(HDR)
• False Color, Zebra
• PBP/PIP(size/position adjustable)

At Konvision, its commitment to quality, innovation, and customer satisfaction drives us to continuously strive for excellence, ensuring that our monitors remain the top choice for professionals across the globe.

Focused on professional broadcasting video monitors, Konvision specializes in developing, manufacturing and distributing full-range HD/4K/8K HDR broadcast monitors from 4″ to 65″ for all broadcast applications. With its own R&D for both software and hardware and independent production line, Konvision have currently obtained more than 50 authorized patents and have strong R&D on the key technology and know-how of broadcast monitors, such as picture processing and color reproduction. In order to give customers the best color management service possible, Konvision also created its own color management system, included leading tetrahedral interpolation algorithm 3D LUT color calibration technology, support the color space of HD (Rec 709) , DCI-P3 and UHD (BT.2020) comply with the different production standard, compatible with Calman and Colourspace calibration software, and could be used with top color calibration instruments like the K10-A and CR 300.

Konvision is fully aware of the impact of product quality on user experience, and has established a complete and robust production quality management system. Konvision has passed ISO9001 quality management system, ISO14001 environmental management system, and ISO45001 occupational health and safety management system certification. Konvision also obtained CE and RoHS certifications. Its monitors have outstanding performance and reliable quality, earning widespread recognition.

Konvision monitors have been widely used by many professional broadcasters and production companies globally and keeps track of exports to more than 120 countries, has more than 1000 partners globally, and serves a sizable users base of broadcast cinema and television media, such as FOX(USA), ZDF(Germany), TRT(Turkey), RAI(Italy), TVP(Poland), DDK(India) etc. Also, Film and TV production giants such as Warner Bros and Disney are using Konvision monitors.
