AV Matrix SDI & HDMI 4K Pattern Generator
Posted on 26 September 2021

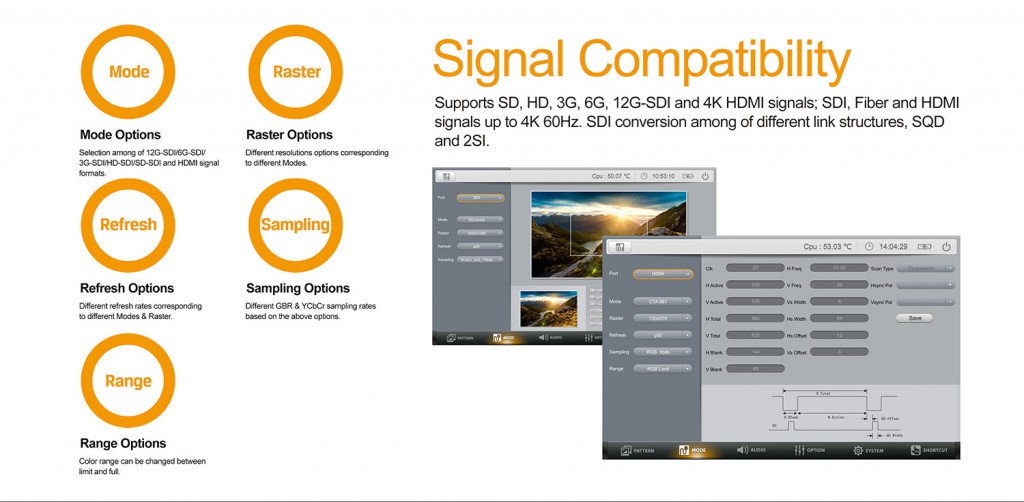

12G-SDI & 4K HDMI2.0 Pattern Generator
- 12G-SDI(4K60Hz) single link, dual link, quad link (SQD/ 2SI)
- Support 6G-SDI, 3G-SDI level A and level B
- Support 4k HDMI2.0 video outputs
- Support 12G-SDI fiber signal (SFP optional)
- 16-Channel SDI audio generation
- Built-in patterns: Color bar, pathology patterns, monochrome, etc.
- USB Port for import the patterns
- Ring pattern, time code, frame counter overlay test and moving test
- REF in for frame synchronization
