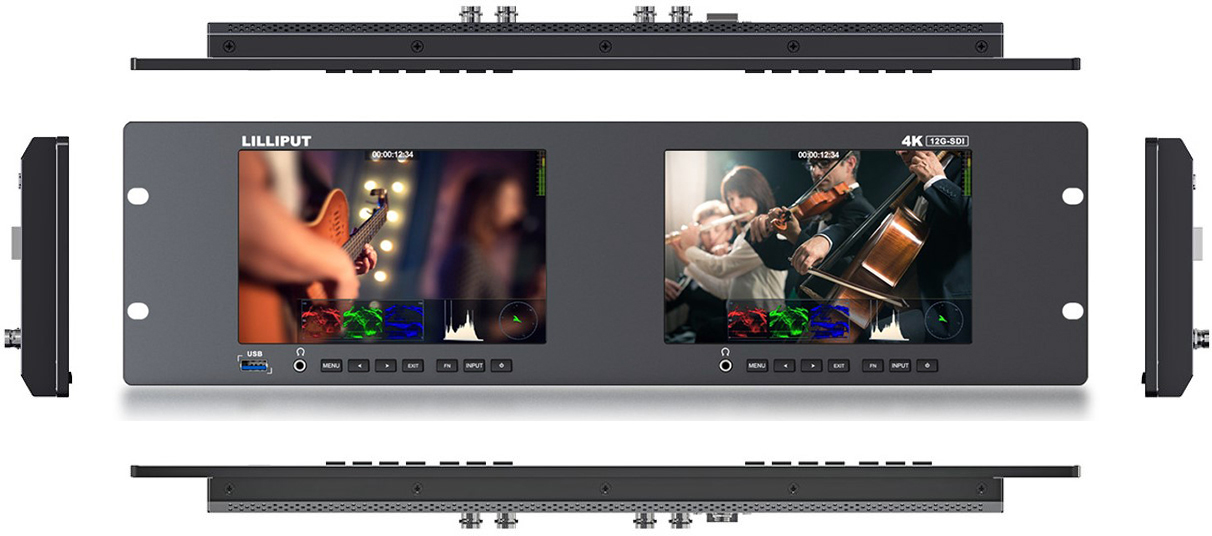

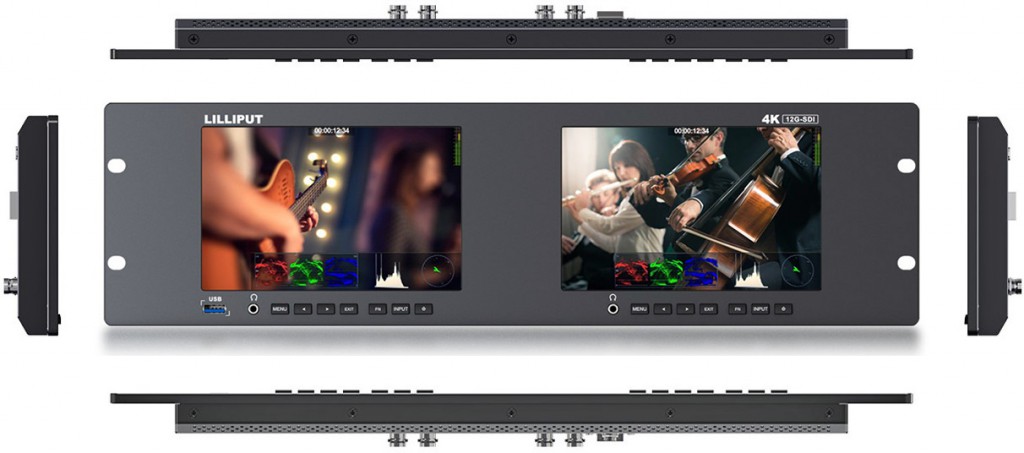

Lilliput Dual 7 inch 3RU rackmount monitor with 12G-SDI /HDMI 2.0

RM-7026-12G

P.O.A

* Ex GST. Check with us for Discounts and the latest Trade pricing!

The RM-7026-12G Dual 7 Inch 3RU Rackmount 12G-SDI Monitor by Lilliput is a high-brightness and high-quality dual-panel monitor that supports HDMI 2.0 and 12G SDI input and output. With dual 7" 1000 nits high brightness LTPS screens, it can handle up to 2160p (4K) at 60Hz and monitor 2 independent input sources. Perfect for broadcast mixing rooms and Outside Broadcast vehicles, the RM-7026 allows video looping and computer control for seamless integration into your video production workflow.

Features:

Up to 1000 Nits brightness
12G-SDI/HDMI 2.0 Supported
Lan connection
Remote controllable via computer
1900x1200 resolution

Specifications:

Display

Panel: 2x7" LTPS
Physical Resolution: 1920x1200
Aspect Ratio: 16:10
Brightness: 1000 Nits
Contrast: 1200:1
Viewing Angle: 160° / 160° (H/V)
HDR Supported: HLG; ST2084 300/1000/100000

HDMI Input: 1 (HDMI 2.0)

12G-SDI Input: 1
HDMI Output: 1 (HDMI 2.0)
12G-SDI Output: 1

Supported Formats

HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
12G-SDI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...

Audio In/Out

Audio Channel: HDMI 8ch / SDI 16ch
Ear Jack: 3.5mm - 2ch 48kHz 24-bit

Power

Input Voltage: DC 12-24V
Power Consumption: ≤21W (12V)

Environment

Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)

Dimensions

Dimensions: 480mm x 131.6mm x 32.5mm (18.9 in x 5.18 in x 1.3 in)
Weight: 1.83kg (4lbs)

Item Includes:

1x 12V 3A DC Power Adapter
1x Tally Connector
1x E-User Manual

Warranty:

1 Year Warranty
