CTC Union, E1/T1 Datacom BERT Tester

HCT-BERT/H

P.O.A

* Check with us for the latest pricing

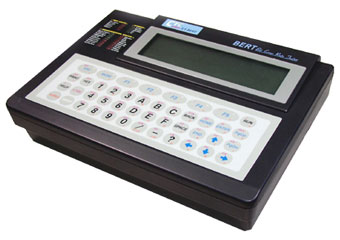

The HCT-BERT/H is a compact, notebook sized E1/T1 datacom Bit Error Rate Tester (BERT) designed for field use in maintenance of E1 (2.048Mbps) or T1 (1.544Mbps) lines. The HCT/BERT-H performs framed, unframed, signaling analysis, and BERT (nx64Kbps datacom BERT or nx56Kbps E1/T1 BERT into any time slot). The HCT-BERT/H tester also provides a variety of E1 or T1 line statuses, transmission performance testing (BERT) and monitoring. On the E1 or T1 line, the HCT-BERT/H series product may be used as a generator or receiver.

- Ten internal memory storage locations for test results
- 32 character x 8 line text/graphic LCD screen
- Loop Back Code Setting and Detection: IN Band, Out Band and ITU-T V.54
- BERT G.821/826, M.2100, Histogram Analysis
- Portable for field use
- Rechargeable battery with battery low indicator
- Results - Report
- Signaling Display: Display all channels of ABCD bits
- Supports CRC, and BPV performance analysis and generator
- User Programmable Pattern Setting: There are three 32 bit programmable patterns, which can be inserted onto the E1/T1 line and drop for analysis
- Print out via Parallel Printer port

Product Datasheet
