CTC Union, E1 BERT Tester / PCM Analyzer

HCT-BERT/C

P.O.A

* Check with us for the latest pricing

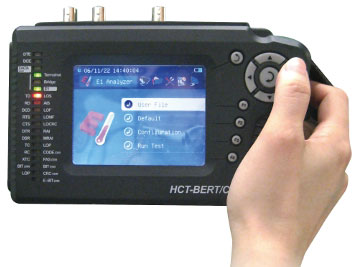

The HCT-BERT/C Bit Error Rate Tester is a compact, color-LCD, graphic-user-interface, single hand E1 PCM measuring instrument designed for field use in analysis and maintenance of data communications (V.35, RS530, X.21, RS232) and E1 (2.048Mbps) lines. The HCT-BERT/C performs framed, unframed, signaling analysis, drop and insert Nx64Kbps data into any time slot. The HCT-BERT/C tester also provides a variety of E1 line statuses, transmission performance testing (BERT) and monitoring. On the E1 line, the HCT-BERT/C may be used as a pattern generator or receiver.

- Color LCD display graphic mode
- USB port for remote control
- Results Report
- Support G.821/826, M.2100 BERT analysis
- Sa bits setup and monitor
- Internal Memory storage of test result, Direct display on LCD screen
- Print out via Parallel Printer port
- Portable for field use
- Upgradeable for advanced features
- Rechargeable battery with battery low indicator
- Supports CRC & BPV performance analysis
- Datacom BERT analysis available for V.35/V.24/RS-232/449/530/ X.21
