CTC Union, PCM Analyzer



* Check with us for the latest pricing

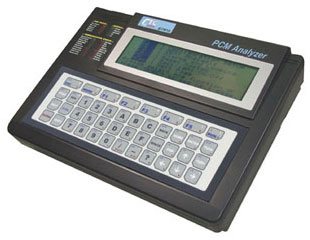

The BTM10 E1/T1 series analyzer is a compact, sub-note sized E1/T1 PCM measuring instrument designed for field use in analysis and maintenance of E1 (2.048Mbps) or T1 (1.544Mbps) lines. The BTM10 performs framed, unframed, signaling analysis, drop and insert 8K voice, Nx64Kbps, or Nx56Kbps data into any time slot. The BTM10 analyzer also provides a variety of E1 or T1 line statuses, transmission performance testing (BERT) and monitoring. On the E1 or T1 line, the BTM10 may be used as a generator or receiver.

- BERT Histogram Analysis
- Large LCD display 32 Characters x 8 Lines, Text / Graphic mode
- Portable for field use
- Print out via Parallel Printer port
- Rechargeable Battery with battery low indicator
- Results Report Internal Memory storage of test result Direct display on LCD screen
- Upgradeable for advanced features
- Loop Back Code Setting and Detection
- Round Trip Delay Measurement
- Pulse Shape Analyzer (optional)
- DS0 Control Loop codes (optional)
- VF Noise Measurement (optional)

Product Datasheet
