TeleDelta 1RU Encoder, 4YPbPr/CVBS/S-Video Input

HDS2800-HHR

P.O.A

* Ex GST. Check with us for the latest pricing

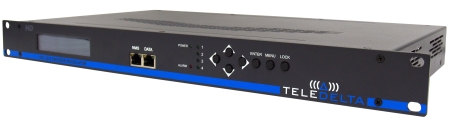

TeleDelta HDS2800-HHR - 4x YPbPr/CVBS/S-Video Input Digital Encoder

The TeleDelta HDS2800-HHR is a modular 1RU digital encoder designed for digital television (DVB-T) and IPTV head-end systems.

The HDS2800-HHR chassis provides MPEG-2 encoding and selectable bitrates per input channel. The HDS2800 chassis also provides 1x Independent, fully configurable COFDM DVB-T output carriers per chassis and 1x MPTS UDP Multicast IP output for IPTV systems.

The TeleDelta designed user interface and control software allows installers to configure and save their desired setup parameters for quick and easy setups onsite.

Alternative Configurations:
  • HDS2802-HHR - Same configuration as above but with 2x DVB-T COFDM outputs and 2x SPTS UDP Multicast IP Outputs
  • HDS2800-HHR-ASI - aome configuration as the HDS2800-HHR with with an ASI Input / Output


Key Features
  • 4x YPbPr/CVBS/S-Video Inputs
  • Supports 576i (SD) resolutions
  • MPEG-2  Encoding
  • Selectable Bit-rate encoding
  • 1x Independent COFDM DVB-T Outputs (configurable to DVB-T parameters)
  • Configurable IP data output (IPTV)
  • Compact 1RU chassis
  • TeleDelta Web-based Management
  • ASI Input / Output options available

The HDS2803-HHR is part of the wider HDS2800 series range of digital encoders, satellite receivers and IPTV headend solutions.
