RDL, 3 Band Parametric Equalizer

FP-PEQ3

$570.60

* Check with us for the latest pricing

- Highly Versatile Parametric Equalizer
- Independent Adjustment Controls
- Adjustable Bandwidth .04 to 1.5 Octave
- Adjustable Frequency 15 Hz to 20 kHz
- Cut or Boost Adjustable +/- 15 dB
- Overlapping Frequency Bands
- Output Level Metering
- Studio Quality, Low-Noise Performance
- Convenience of RDL FLAT-PAK's

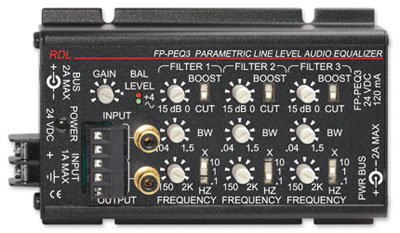

The FP-PEQ3 is the ideal choice in many applications where parametric equalization or acoustic notch filtering is needed. The FP-PEQ3 is a single-channel module featuring three identical independent filters. Each filter has separately adjustable FREQUENCY, BOOST/CUT amplitude, and bandwidth (BW) parameters. The FREQUENCY has three fully overlapping switch-selectable ranges: 15 Hz to 200 Hz, 150 Hz to 2 kHz, 1.5 kHz to 20 kHz. The BOOST/CUT provides a +/-15 dB range, switch-selectable to produce either cut or boost, making acoustic adjustment easier than with other parametric equalizers. Setting a given filter’s BOOST/CUT to minimum completely removes that filter from the circuit. The bandwidth (BW) allows adjustment from 0.04 octave to 1.5 octave.

Download Product Datasheet

http://www.rdlnet.com/product.php?page=115
