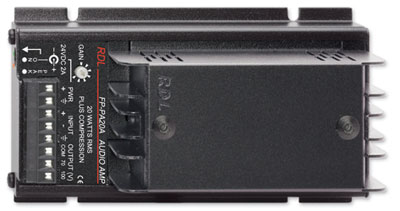

RDL 20W Mono Audio Amplifier, 70V/100V Output

FP-PA20A

$588.59

* Ex GST. Check with us for Discounts and the latest Trade pricing!


  • 20 Watts RMS Constant Voltage Amplifier
  • 70 V and 100 V Outputs
  • Integral Audio Compressor to Control Clipping
  • High Overall Operating Audio Level
  • Maximized Audio Level for Output Power
  • Audio Quality Superior to Standard Amplifiers

The FP-PA20A features a balanced line level input that may be connected unbalanced. A front panel gain control is designed to be adjusted either manually or with a trimming screwdriver. The gain range will accommodate standard unbalanced levels as well as professional balanced levels. Both a 70 V and 100 V amplified output are provided to drive corresponding speakers in a distributed sound system. Audio levels that could cause the amplified output to clip are compressed using two dynamic time constants designed to preserve aural transparency. Normal audio level signals remain unaffected by the compressor thereby preserving audio dynamics and preventing the compressor from increasing feedback potential when the amplifier is used for paging. The FP-PA20A produces average audio levels and audio clarity normally expected of amplifiers delivering much higher output power.

Download Product Datasheet

https://www.rdlnet.com/product.php?page=91
