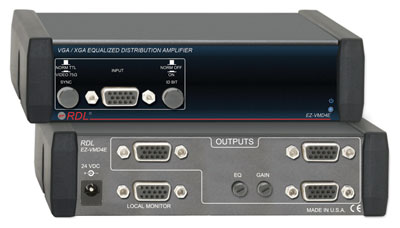

RDL, 1x4 VGA/XGA Equalized Distribution Amplifier



* Ex GST. Check with us for the latest pricing

- Input and Outputs on HD15 Female Connectors
- Wide RGB Bandwidth > 400 MHz Loaded
- High Resolution Compatibility VGA through QXGA
- Separate video line driver amplifiers for the LOCAL MONITOR and the three monitor OUTPUTS
- Reliable Full Size Switches for Switched Functions
- Switch Selectable TTL or Video 75 Ohm Input Sync
- Front Panel ID Bit Selection for Each Input
- DC RGB Coupling, Output Polarity & Offset Follow Input
- Rear Panel GAIN and EQ Peaking Trimmers
- HD15 Input Cable Included - 36" long

The EZ-VMD4E is a high resolution computer video distribution amplifier with four outputs. The input has an associated BIT ID switch to assure compatibility with various computers. Sync is front panel switch selectable between standard TTL or video. One of the two outputs is indivually buffered for driving the computer monitor. The other three outputs are driven by separate output amplifiers that include rear panel gain and equalization trimmers that provide adjustable compensation for quality monitor cable lengths exceeding 100 m (300 ft). All switched functions are easily accessible on the front panel.

Download Product Installation Manual
