RDL, 1x2 VGA/XGA Distribution Amplifier
EZ-VMD2X
$305.70
* Check with us for the latest pricing
- Input and Outputs on HD15 Female Connectors
- Two Individually Buffered Outputs
- Wide RGB Bandwidth > 400 MHz Loaded
- High Resolution Compatibility VGA through QXGA
- Reliable Full Size Switches for Switched Functions
- Switch Selectable TTL or Video 75 Ohm Input Sync
- NORM ID BIT Connects LOCAL MONITOR and INPUT ID
- Front Panel Input ID Bit Selection
- DC RGB Coupling, Output Polarity & Offset Follow Input
- HD15 Input Cable Included - 36" long

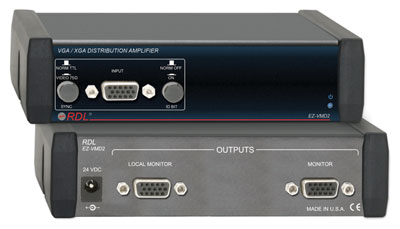

The EZ-VMD2 is a high-resolution computer video distribution amplifier with two outputs. The input has an associated BIT ID switch to assure compatibility with various computers. Sync is front panel switch selectable between standard TTL or video. One of the two outputs is indivually buffered for driving the computer monitor. The second output is driven by separate output amplifiers that provide flat, wideband response. All switched functions are easily accessible on the front panel.
Download Product Installation Manual
- Two Individually Buffered Outputs
- Wide RGB Bandwidth > 400 MHz Loaded
- High Resolution Compatibility VGA through QXGA
- Reliable Full Size Switches for Switched Functions
- Switch Selectable TTL or Video 75 Ohm Input Sync
- NORM ID BIT Connects LOCAL MONITOR and INPUT ID
- Front Panel Input ID Bit Selection
- DC RGB Coupling, Output Polarity & Offset Follow Input
- HD15 Input Cable Included - 36" long
The EZ-VMD2 is a high-resolution computer video distribution amplifier with two outputs. The input has an associated BIT ID switch to assure compatibility with various computers. Sync is front panel switch selectable between standard TTL or video. One of the two outputs is indivually buffered for driving the computer monitor. The second output is driven by separate output amplifiers that provide flat, wideband response. All switched functions are easily accessible on the front panel.
