RDL, Dual Microphone Preamplifier with Compressor

EZ-MPA2X

$454.67

* Ex GST. Check with us for the latest pricing

Features:
- Left and Right Balanced XLR Microphone Inputs
- Switch-Selectable Phantom on Rear Panel
- Unbalanced Output on MINI or RCA Jacks
- Input and Output Connections on Rear Panel
- Front-Panel Compressor Enable/Disable Switch
- Audio Compressors Control Overloads
- Front-Panel LEVEL Control for Each Channel
- Dual-LED VU Meter for Each Channel

Advantages:
- Optimized for Dynamic or Condenser Mics
- Headroom Accomodates High Input Levels
- Headroom Increases with Lower Gain Settings
- Compressor Limits Clipping Over Wide Dynamic Range

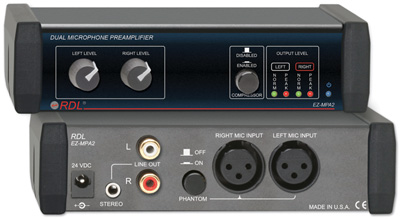

The EZ-MPA2 is a stereo microphone preamplifier with front-panel volume controls and audio level metering. A front-panel switch engages audio compressors to control overloads and clipping during high level audio bursts or peaks from the microphones. Dynamic or condenser microphones are both supported with rear-panel switchable phantom voltage. The line output is available on RCA or MINI jacks. Left and right channel LED VU metering facilitates easy level adjustment. The EZ-MPA2 is ideal to add microphone inputs to mixers and amplifiers with line inputs. It is used in houses of worship, restaurants, clubs, meeting rooms, educational facilities, conference rooms, studios and commercial sound systems.

Download Product Installation Manual
