RDL, Remote Level Controller, White

D-RLC10K

$98.06

* Ex GST. Check with us for the latest pricing

- Remote Level Control Panel
- Rotary Control
- Direct Connection to RDL VCA Modules
- Single Control Location
- Premium-Quality Remote Panel
- Professional Aesthetic Appearance

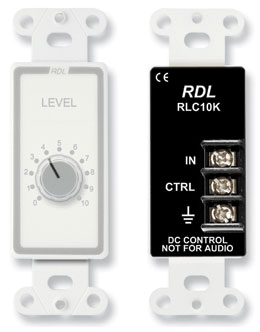

The RLC10K is the ideal companion to the RDL VCA modules where levels are to be controlled from a single remote location. It is designed to directly interface with the 3 wire control input of the VCA module. The RLC10K contains a high-quality 10 kOhm potentiometer for setting the control voltage.

The RLC10K panel has 10 graphic increments which provide a visual indication of the level setting. The RLC10K and RDL remote source selector may be mounted together in a double box/plate to form a visually appealing control of both audio source and audio level.

Three conductors are required for connection between the RLC10K and an RDL VCA. A single shielded pair is normally used.

All the RLC10K features combine to make it the optimum economical choice for single-point remote level control in high-quality systems. Use the RLC10K individually with an RDL control module, or combine it side-by-side with other RDL remote accessories as part of a complete audio/video system.

Download Product Datasheet
