Telewave, 24 to 2400 MHz Power Dividers

*ANTPD

P.O.A

* Ex GST. Check with us for the latest pricing

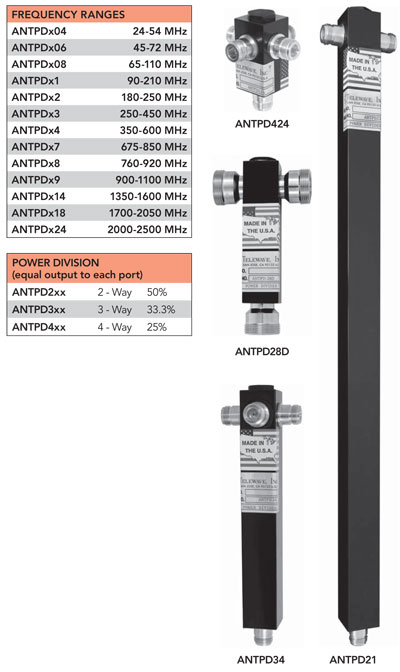

Telewave RF Power Dividers divide up to 500 Watts of power from a single source over 2, 3, or 4 outputs. Dividers are available in overlapping frequency bands from 24 MHz to 2.5 GHz, with very low VSWR and insertion loss. Power is divided equally to each output port.

Telewave power dividers are custom machined from solid 6061-T6 aluminum stock. These devices utilize solid metal conductors for all internal RF paths, enabling 500 watt continuous power handling and extremely low insertion loss. No coaxial cabling of any kind is used internally, and no tuning is required for full band coverage. The standard connector type is N Female, and 7-16 DIN can also be supplied as an option for high power applications.

Telewave power dividers also feature our high-tech Txylan coating, which provides exceptional protection from water, corrosive chemicals, salt spray, and windblown abrasives. This poly-polar coating beads water, and is chemically bonded to the metal surface of the device, and does not chip or flake. The size and shape of these dividers lends itself to many possible mounting applications, including panels, masts, or tower legs, providing maximum installation flexibility.

In situations where port-to-port isolation is not required, Telewave power dividers can also be used to feed several receivers from a common antenna, with less than 0.25 dB insertion loss.

Download Product Datasheet
